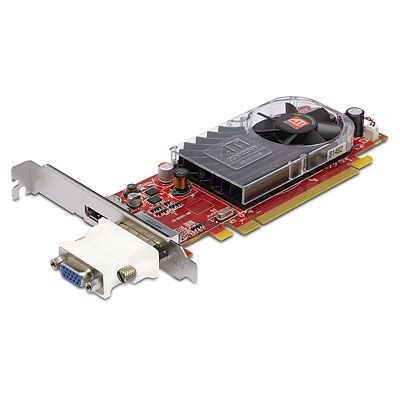

Grafika ATI Radeon HD 3470 (256MB SH) 64bit PCIe x16
Stable 2D and advanced 3D graphics performance
Faster frame rates and excellent visual quality
Low profile configured with full-height bracket
256 MB dedicated on-board graphics frame buffer memory
Conforms to full PCI Express 2.0 specification for low-profile form factor (x16 lanes native PCI Express implementation)
Provides dual-link (DL) DVI-I and DisplayPort output ports
DVI-to-VGA adapter for VGA output support included
Dual-link (DL) DVI support for high resolution LCD monitor support (such as the HP LP3065 LCD monitor)
HDCP for HD movie playback support
DisplayPort connector supports Multimode technology to support connection to DVI-D monitors
Graphics Chip RV620
Core clock 750 MHz
Memory clock 500 MHz
Max Analog - 2048x1536, Max Digital 2560x1600
